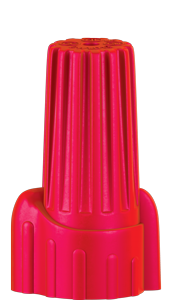

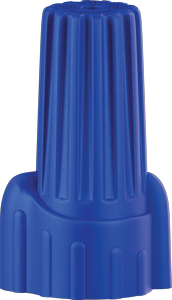

Designed specifically for Copperweld Copper-Clad Aluminum (CCA) Building Wire, Copperweld Twist-on Splice Connectors create strong, stable connections, providing installers with a reliable, easy-to-use solution for clean, confident splicing in any enclosure. Engineered for a smooth installation experience, this connector simplifies CCA splicing for a quick, predictable install.
 CWLD12 |  CWLD13 |  CWLD17 |
|---|---|---|
| 1 to 3 #12 | 1 to 2 #8 | 1 to 2 #6 |
| 1 to 4 #14 | 1 to 3 #10 | 1 to 3 #8 |
| 1 to 6 #22, #20, #18 or #16 | 1 to 5 #12 | 1 to 5 #10 |
| 1 #22 w/ 2 to 5 #20 | 1 to 6 #16 or #14 | 1 to 6 #12 or #14 |
| 1 #22 w/ 1 to 5 #18, #16 | 2 to 6 #18 | 1 #14 w/ 1 to 5 #12 |
| 1 #22 w/ 1 to 4 #14 | 1 #18 w/ 1 to 5 #16 or #14 | 1 #14 w/ 1 to 4 #10 |
| 1 #22 w/ 1 to 2 #12 | 1 #18 w/ 1 to 4 #12 | 1 #14 w/ 1 to 2 #8 |
| 1 #22 w/ 1 #10 | 1 #18 w/ 1 to 3 #10 | 1 #14 w/ 1 #6 |
| 2 #22 w/ 1 to 5 #20, #18 or #16 | 1 #18 w/ 1 #8 | 2 #14 w/ 1 to 4 #12 or #10 |
| 2 #22 w/ 1 to 4 #14 | 2 #18 w/ 1 to 4 #16, #14 or #12 | 2 #14 w/ 1 to 2 #8 |
| 2 #22 w/ 1 to 2 #12 | 2 #18 w/ 1 to 2 #10 | 2 #14 w/ 1 #6 |
| 2 #22 w/ 1 #10 | 2 #18 w/ 1 #8 | 3 #14 w/ 1 to 3 #12 or #10 |
| 3 #22 w/ 1 to 3 #20, #18, #16 or #14 | 3 #18 w/ 1 to 3 #16, #14 or #12 | 3 #14 w/ 1 to 2 #8 |
| 3 #22 w/ 1 to 2 #12 | 3 #18 w/ 1 to 2 #10 | 3 #14 w/ 1 #6 |
| 3 #22 w/ 1 #10 | 3 #18 w/ 1 #8 | 4 #14 w/ 1 to 2 #12, #10 or #8 |
| 4 #22 w/ 1 to 2 #20, #18, #16 or #14 | 4 #18 w/ 1 to 2 #16, #14, #12 or #10 | 4 #14 w/ 1 #6 |
| 4 #22 w/ 1 to 2 #12 | 4 #18 w/ 1 #8 | 1 #12 w/ 1 to 4 #10 |
| 4 #22 w/ 1 #10 | 5 #18 w/ 1 #16, #14, #12, #10 or #8 | 1 #12 w/ 1 to 2 #8 |
| 5 #22 w/ 1 #20, #18, #16, #14, #12 or #10 | 1 #16 w/ 1 to 5 #14 | 1 #12 w/ 1 #6 |
| 1 #20 w/ 1 to 5 #18, or #16 | 1 #16 w/ 1 to 4 #12 | 2 #12 w/ 1 to 3 #10 |
| 1 #20 w/ 1 to 4 #14 | 1 #16 w/ 1 to 2 #10 | 2 #12 w/ 1 to 2 #8 |
| 1 #20 w/ 1 to 2 #12 | 1 #16 w/ 1 #8 | 2 #12 w/ 1 #6 |
| 1 #20 w/ 1 #10 | 2 #16 w/ 1 to 4 #14 or #12 | 3 #12 w/ 1 to 3 #10 |
| 2 #20 w/ 1 to 4 #18, #16 or #14 | 2 #16 w/ 1 to 2 #10 | 3 #12 w/ 1 to 2 #8 |
| 2 #20 w/ 1 to 2 #12 | 2 #16 w/ 1 #8 | 3 #12 w/ 1 #6 |
| 2 #20 w/ 1 #10 | 3 #16 w/ 1 to 3 #14 or #12 | 4 #12 w/ 1 to 2 #10 |
| 3 #20 w/ 1 to 3 #18, #16 or #14 | 3 #16 w/ 1 to 2 #10 | 4 #12 w/ 1 #8 |
| 3 #20 w/ 1 to 2 #12 | 3 #16 w/ 1 #8 | 4 #12 w/ 1 #6 |
| 3 #20 w/ 1 #10 | 4 #16 w/ 1 to 2 #14, #12 or #10 | 5 #12 w/ 1 #10 or #8 |
| 4 #20 w/ 1 to 2 #18, #16, #14 or #12 | 4 #16 w/ 1 #8 | 1 #10 w/ 1 to 2 #8 |
| 4 #20 w/ 1 #10 | 5 #16 w/ 1 #14, #12, #10 or #8 | 1 #10 w/ 1 #6 |
| 5 #20 w/ 1 #20, #18, #16, #14, #12 or #10 | 1 #14 w/ 1 to 4 #12 | 2 #10 w/ 1 #8 |
| 1 #18 w/ 1 to 5 #16 | 1 #14 w/ 1 to 2 #10 | 2 #10 w/ 1 #6 |
| 1 #18 w/ 1 to 4 #14 | 1 #14 w/ 1 #8 | 3 #10 w/ 1 #8 |
| 1 #18 w/ 1 to 2 #12 | 2 #14 w/ 1 to 3 #12 | 1 #8 w/ 1 #6 |
| 1 #18 w/ 1 #10 | 2 #14 w/ 1 to 2 #10 | |
| 2 #18 w/ 1 to 4 #16 | 2 #14 w/ 1 #8 | |
| 2 #18 w/ 1 to 3 #14 | 3 #14 w/ 1 to 3 #12 | |
| 2 #18 w/ 1 to 2 #12 | 3 #14 w/ 1 #10 | |
| 2 #18 w/ 1 #10 | 3 #14 w/ 1 #8 | |
| 3 #18 w/ 1 to 3 #16 or #14 | 4 #14 w/ 1 to 2 #12 | |
| 3 #18 w/ 1 to 2 #12 | 4 #14 w/ 1 #10 | |
| 3 #18 w/ 1 #10 | 5 #14 w/ 1 #12 or #10 | |
| 4 #18 w/ 1 to 2 #16, #14 or #12 | 1 #12 w/ 1 to 2 #10 | |
| 4 #18 w/ 1 #10 | 1 #12 w/ 1 #8 | |
| 5 #18 w/ 1 #16, #14, #12 or #10 | 2 #12 w/ 1 #10 or #8 | |
| 1 #16 w/ 1 to 4 #14 | 3 #12 w/ 1 #10 | |
| 1 #16 w/ 1 to 2 #12 | 1 #10 w/ 1 #8 | |
| 1 #16 w/ 1 #10 | ||
| 2 #16 w/ 1 to 3 #14 | ||
| 2 #16 w/ 1 to 2 #12 | ||
| 2 #16 w/ 1 #10 | ||
| 3 #16 w/ 1 to 2 #14 | ||
| 3 #16 w/ 1 #12 or #10 | ||
| 4 #16 w/ 1 to 2 #14 | ||
| 4 #16 w/ 1 #12 | ||
| 5 #16 w/ 1 #14 or #12 | ||
| 1 #14 w/ 1 to 2 #12 | ||
| 1 #14 w/ 1 #10 | ||
| 2 #14 w/ 1 #12 or #10 | ||
| 3 #14 w/ 1 #12 | ||
| 1 #12 w/ 1 #10 |
| | | ||
|---|---|---|---|---|
| Specifications | 22-8 AWG | 18-8 AWG | 14-6 AWG | |
Part Number | CWLD12 | CWLD13 | CWLD17 | |
Color | Tan | Red | Blue | |
Temperature Rating (Max.) | 105°C (221°F) | 105°C (221°F) | 105°C (221°F) | |
Voltage Rating (Max.) | 600V | 600V | 600V | |
Wire Range (Solid/Stranded)* | 22-8 AWG | 18-8 AWG | 14-6 AWG | |
Wire Range (Max.)* | (3) #12 | (2) #8 | (2) #6 | |
Wire Range (Min.)* | (3) #22 | (4) #22 | (3) #12 | |
Quantity per Bag** | 1000 Pieces/Bag | 1000 Pieces/Bag | 500 Pieces/Bag | |
Quantity per Barrel** | 45,000 | 25,000 | 9,000 | |
Bag Part Number | CWLD-TAN-1000 | CWLD-RED-1000 | CWLD-BLUE-500 | |
Barrel Part Number | CWLD-TAN-45000 | CWLD-RED-25000 | CWLD-BLUE-9000 | |
* View Wire Combinations for full list of recommended wire combinations. ** Other packaging options and denominations available on request. | ||||
| | | ||
| Dimensions | 22-8 AWG | 18-8 AWG | 14-6 AWG | |
 | # | CWLD12 | CWLD13 | CWLD17 |
| A | 7.20 mm (0.283 in.) | 9.00 mm (0.354 in.) | 12.00 mm (0.472 in.) | |
| B | 11.00 mm (0.433 in.) | 13.00 mm (0.512 in.) | 17.80 mm (0.701 in.) | |
| C | 18.00 mm (0.709 in.) | 23.20 mm (0.913 in.) | 32.00 mm (1.260 in.) | |
| D | 9.00 mm (0.354 in.) | 9.60 mm (0.378 in.) | 13.00 mm (0.512 in.) | |
| E | 27.70 mm (1.091 in.) | 31.00 mm (1.220 in.) | 39.00 mm (1.535 in.) | |
Listed for use as a pressure-type wire connector on the following solid and/or stranded: Copper (CU) to Copper (CU) or Copper-Clad Aluminum (CC) to Copper-Clad Aluminum (CC) or Copper (CU) to Copper-Clad Aluminum (CC). Suitable for use with Copperweld® CCA Building Wire. Identified for intermixing between Copper (CU) and Copper-Clad Aluminum (CC) conductors.
