High-Voltage Conductors

The benefits of aluminum, the connectivity of copper

Lose the weight

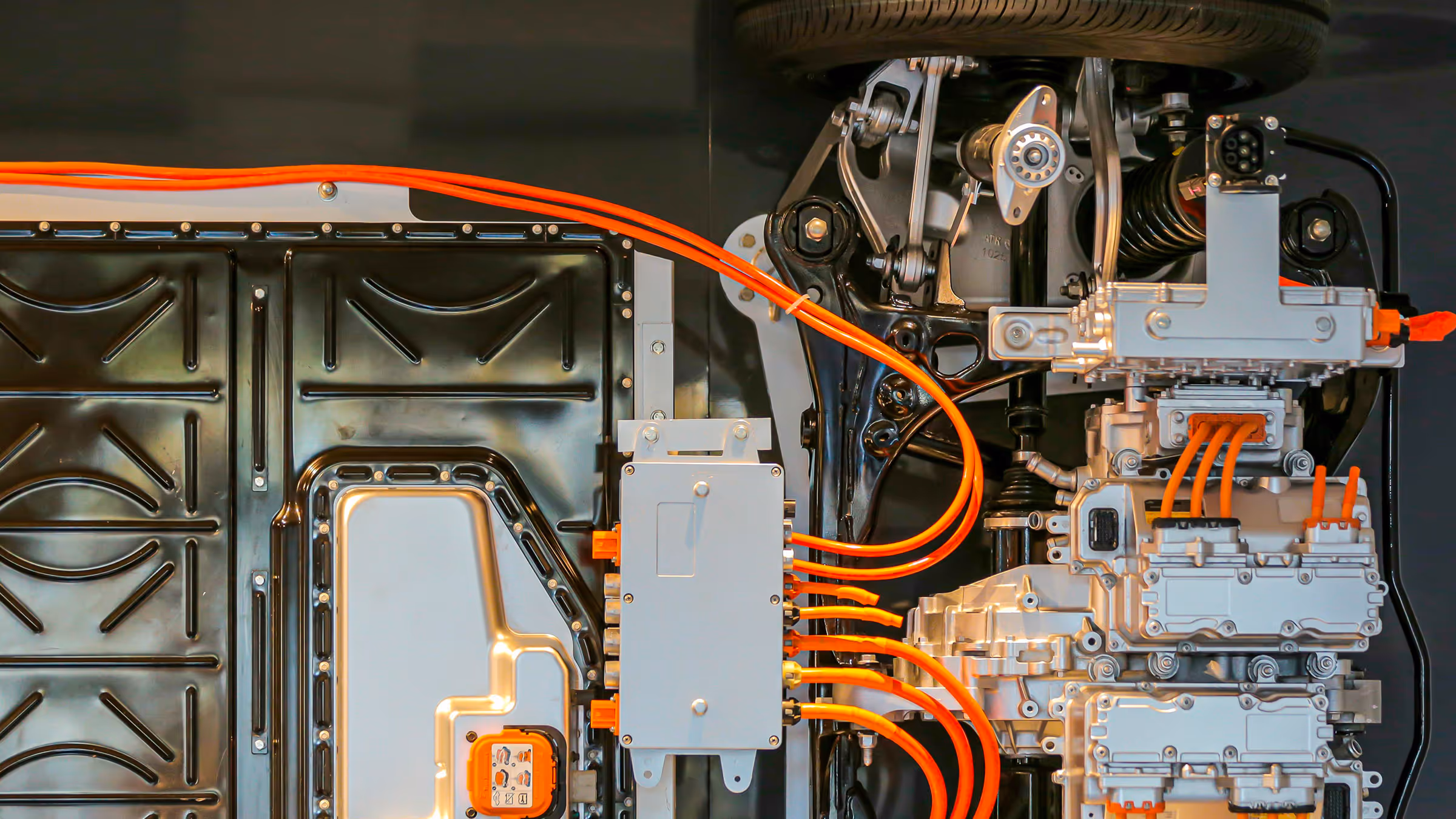

Electric vehicles have over 3X the copper content of Internal Combustion Engine (ICE) equipped vehicles with a significant portion of the weight due to wire and cables.

When sized for equivalent ampacities, Copperweld’s suite of CCA conductors can reduce that weight up to 40% and optimize energy efficiencies of the entire architecture, generating less heat.

Our wire is available in both SAE and ISO wire sizes, bare or insulated. CCA wire is commonly available in 8mm² to 120mm² diameters, offered as annealed or hard-drawn, with 10% and 15% copper volumes. Copperweld offers a wide variety of reel sizes, material and options.

High-Voltage Cable Product Offering

Copperweld can manufacture coaxial conductors to any specification. Contact our sales team to discuss your project needs and start a quote.

Select a category to view available products and specs:

ISO CCA High-Voltage Cable

ISO Size

Diameter

Strands

Strand OD

Weight

Resistance
(Using Nom. Strand OD)

Tensile

(mm)

(mm)

(lbs/1000 ft)

(mΩ/m)

(psi)

12

4.1148

154

0.2870

22.68455

2.75290

30

16

4.5135

105

0.4039

30.62218

2.03932

30

20

5.1892

247

0.2870

36.38366

1.71638

30

25

5.6419

154

0.4547

56.92189

1.09709

30

30

6.1804

361

0.3607

83.97237

0.74368

30

35

6.5430

551

0.2870

81.16355

0.76941

30

40

7.3482

494

0.2870

72.76732

0.85819

30

50

8.2525

798

0.2540

92.05671

0.67837

30

60

8.7404

741

0.2870

109.15098

0.57213

30

70

9.2659

1408

0.2540

162.42587

0.38447

30

95

10.9981

836

0.3607

194.46234

0.32113

30

120

12.3608

1064

0.3607

247.49753

0.25232

30

SAE CCA High-Voltage Cable

ISO Size

Diameter

Strands

Strand OD

Weight

Resistance
(Using Nom. Strand OD)

Tensile

(mm)

(mm)

(lbs/1000 ft)

(mΩ/m)

(psi)

6

0.162

154

29

22.68455

2.75290

30

4

0.2043

247

29

36.38366

1.71638

30

2

0.2576

551

29

81.16355

0.76941

30

1

0.2893

494

29

72.76732

0.85819

30

0

0.3249

798

30

92.05671

0.67837

30

00

0.3648

1408

30

162.42587

0.38447

30

000

0.4096

900

30

103.82335

0.60149

30

0000

0.4600

2109

30

243.29273

0.25668

30

Copperweld Automotive Benefits

Strength & Resiliency

Copperweld CCS's high-carbon steel core provides strength, flexibility and the ability to stretch more than 15% — perfect for applications subject to repetitive motion.

Lightweight

The linear weight of our CCS is more than 10% lighter than solid copper which can help lower overall vehicle weight, save on freight expenses and improve the ease of installation.

Connectivity

Copperweld CCA provides the weight savings achievable with aluminum wiring while offering the added convenience of standard copper connection sytems.

Energy Efficient

Equivalently sized Copperweld CCA provides a larger cross-sectional area, resulting in overall operating temperatures, which can improve long-term reliability.

Corrosion Resistance

Appropriately insulated Copperweld CCS is perfectly suited for severe environmental conditions involving salt, water and typical under-hood contaminants.

Theft Deterrent

Reduce costly in-factory wire theft. Copperweld’s metallurgically bonded conductors have extremely low street value, making it unattractive to copper thieves.
