ArcAngel^™

Flexible Copper-Clad Steel (CCS) Conductor for Demanding Utility Applications

Premium substation grounding

ArcAngel^™ is engineered for easier installation, high fault performance, and proactive maintenance in complex grounding layouts.

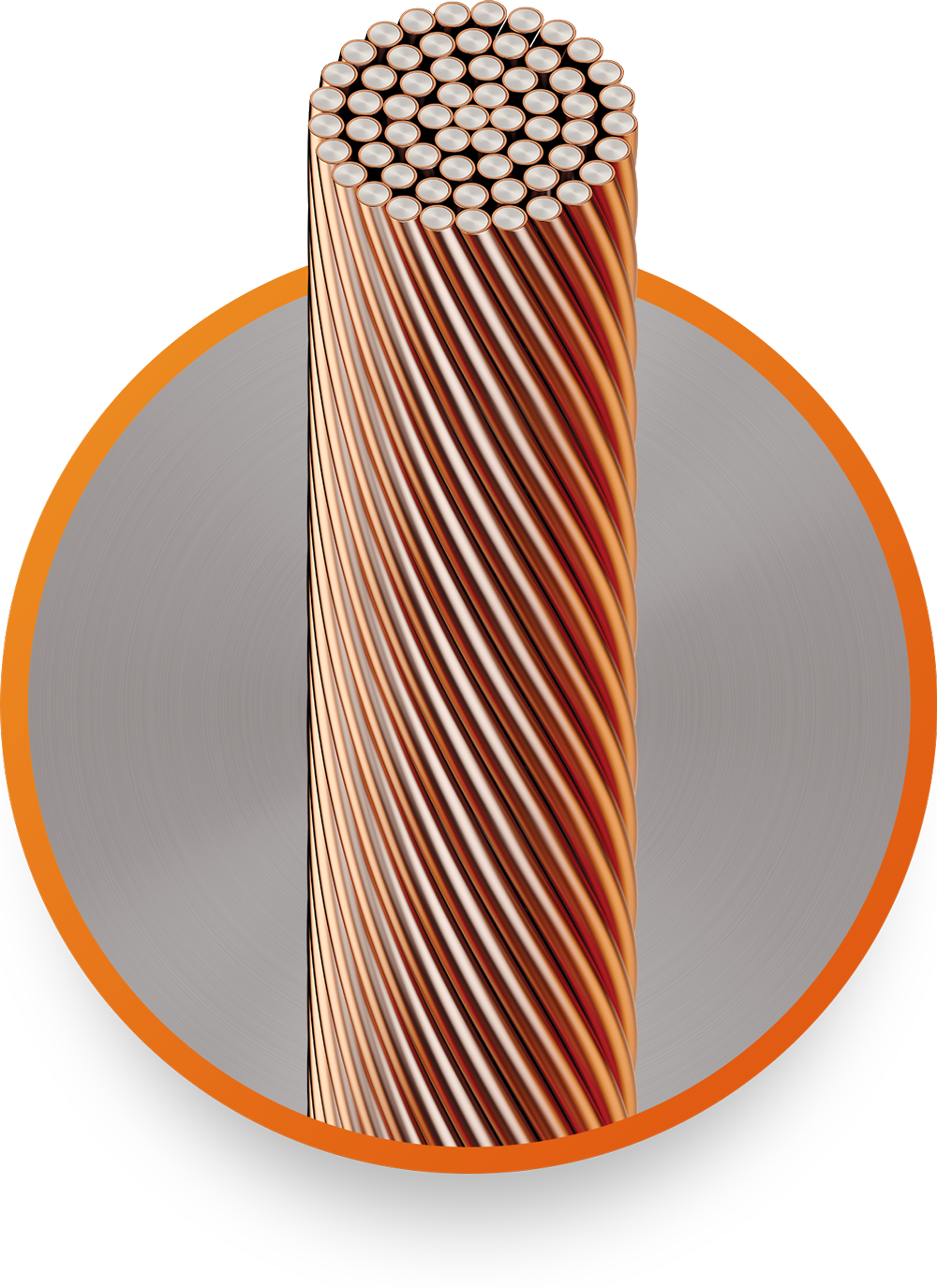

ArcAngel^™ is Copperweld’s high-strand-count CCS conductor, engineered to bend easily during installation while combining the electrical performance and corrosion resistance of copper with the strength of steel. With an optional ground fault indicator strand that supports faster inspection and maintenance visibility, ArcAngel^™ helps utilities keep critical grounding systems performing for decades. Flexible and durable, ArcAngel helps utilities strengthen critical infrastructure from the ground up.

Features and Benefits:

Increased Flexibility – High strand count improves ease of installation without sacrificing strength, simplifying routing through congested substation layouts.

Improved Electrical Performance – Ground fault performance equivalent to copper, with greater mechanical durability for demanding utility grounding applications.

Ground Fault Indicator Strand – Optional fault-identification strand changes color when a fault occurs, helping crews quickly identify damage and simplify maintenance.

Superior Strength – With the strength of steel, CCS resists stretching, breakage, and deformation under mechanical and thermal stress.

Reduced Theft Incentive – With a rugged steel core and lower scrap value than solid copper, CCS helps reduce theft incentives in remote or unmonitored locations.

Corrosion Resistance – ArcAngel^™ is engineered to deliver long-term performance in harsh environments, supporting extended service life in buried and exposed grounding applications.

ArcAngel^™ Product Specifications

with copper comparison

Part Name	Part #	Break Load Tensile		lsc (up to 500 ms)	Weight		Nom. O.D.
Part Name	Part #	lbf	kgf	kA	lb/kft	kg/km	in	mm
Century^™ 19 No. 4	Q6C19X4A	24,440	11,086	109.0	2,255	3,356	1.022	25.96
ArcAngel^™ 101	CWAA101	23,543	10,679	101.0	1,905	2,835	0.941	23.89
500 kcmil Copper	CUZ37X1162A	15,240	6,913	97.0	1,544	2,298	0.796	20.22
Century^™ 19 No. 5	Q6C19X5A	22,219	10,078	84.5	1,788	2,661	0.910	23.10
ArcAngel^™ 73	CWAA73	17,077	7,746	73.0	1,382	2,056	0.801	20.35
350 kcmil Copper	CUZ37X0973A	10,680	4,844	68.0	1,081	1,609	0.676	17.17
Century^™ 19 No. 6	Q6C19X6A	17,623	7,994	67.0	1,418	2,110	0.810	20.57
Century^™ 19 No. 7	Q6C19X7A	13,983	6,343	53.2	1,125	1,674	0.722	18.33
ArcAngel^™ 52	CWAA52	12,192	5,530	52.0	987	1,468	0.677	17.19
250 kcmil Copper	CUZ37X0822A	7,627	3,460	48.0	772	1,149	0.572	14.53
ArcAngel^™ 44	CWAA44	10,235	4,643	44.0	828	1,232	0.620	15.75
Century^™ 19 No. 8	Q6C19X8A	11,088	5,029	42.0	892	1,327	0.643	16.32
4/0 Copper	CUZ19X1065A	5,983	2,714	41.0	653	972	0.546	13.40
Century^™ 7 No. 4	Q6C7X04A	10,326	4,684	39.3	827	1,231	0.613	15.57
Century^™ 19 No. 9	Q6C19X9A	8,788	3,986	33.4	707	1,052	0.572	14.53
Century^™ 7 No. 5	Q6C7X05A	8,186	3,713	31.1	656	977	0.528	13.86
4Thought	Q6C19X1055A	7,476	3,391	28.4	601	895	0.510	13.40
ArcAngel^™ 28	CWAA28	6,515	2,955	28.0	524	780	0.493	12.51
Century^™ 19 No. 10	Q6C19X10A	6,973	3,163	26.5	561	835	0.910	12.94
2/0 Copper	CUZ19X0837A	3,763	1,707	26.0	411	611	0.402	10.21
Century^™ 7 No. 6	Q6C7X06A	6,493	2,945	24.7	520	774	0.486	12.34
ArcAngel^™ 22	CWAA22	5,319	2,413	22.0	428	637	0.445	11.30
Century^™ 19 x 0827	Q6C19X0827A	4,538	2,058	21.0	365	543	0.414	10.50
1/0 Copper	CUZ19X0745A	3,221	1,461	20.0	323	481	0.368	9.36
Century^™ 7 No. 7	Q6C7X07A	5,151	2,336	19.6	413	615	0.433	11.00
Century^™ 19 x 0860A	Q6C19X0860A	4,967	2,253	18.9	400	595	0.430	10.92
Century^™ 7 x 1379	Q6C7X1379A	4,705	2,134	17.9	561	835	0.414	10.51
Century^™ 7 No. 8	Q6C7X08A	4,085	1,853	15.5	327	487	0.386	9.79
Century^™ 19 x 075	Q6C19X075A	3,778	1,714	14.4	304	452	0.375	9.53
ArcAngel^™ 14	CWAA14	3,290	1,492	14.0	265	394	0.350	8.89
No. 2 Copper	CUZ7X0974A	1,928	875	13.0	205	305	0.258	6.54
Century^™ 7 No. 9	Q6C7X09A	3,238	1,469	12.3	386	574	0.343	8.72
Century^™ 7 No. 10	Q6C7X10A	2,569	1,165	9.8	206	306	0.306	7.76
Century^™ No. 2	Q6C2576A	2,696	1,223	8.9	186	277	0.258	6.54
No. 4 Copper	CUZ2043A	1,200	544	8.0	129	192	0.204	5.19
Century^™ 7 x 0860A	Q6C7X0860A	1,830	830	6.9	147	219	0.258	6.55
Century^™ No. 4	Q6C2043A	1,639	743	5.6	117	174	0.204	5.19
No. 6 Copper	CUZ1620A	763	346	5.0	81	121	0.162	4.11
Century^™ 7 x 068	Q6C7X0680A	1,144	519	4.3	91	135	0.204	5.18
Century^™ No. 6	Q6C1620A	1,031	468	3.5	74	110	0.162	4.11
No. 8 Copper	CUZ1285A	499	226	3.0	51	76	0.129	3.28
Century^™ No. 8	Q6C1285A	988	448	2.5	47	69	0.129	3.28

Product Applications

Substation
Grounding grids and ground mats where added flexibility improves installation efficiency
Equipment grounding and bonding in congested or complex substation layouts
Fence grounding and perimeter grounding systems where tin-coated conductors blend visually with galvanized fencing and structures
Grounding applications that benefit from a visible indicator strand to support inspection, maintenance awareness, and worker safety
Substation expansions, retrofits, and brownfield upgrades
Transmission & Distribution
Transmission tower grounding where routing flexibility is beneficial
Grounding applications with tight routing, bends, or complex hardware
Bonding of steel structures and hardware
Renewable Energy
Solar farm grounding grids and equipment grounding
Wind turbine grounding and foundation bonding
Collection system grounding for solar and wind projects
Grounding for remote or unmanned solar and wind installations

Finish Options

Bare

Our original uncoated CCS finish

Bare Copperweld^® Copper-Clad Steel (CCS) combines the mechanical strength of steel with the conductivity and corrosion resistance of copper. Continuous copper cladding is metallurgically bonded to a steel core, creating a grounding conductor built for long service life in demanding environments.

Features and Benefits:

Copper-Clad Steel construction delivers high strength with reliable grounding performance
Copper cladding resists corrosion in buried and exposed applications
Proven long-term durability in a wide range of soil conditions
Suitable for substation, transmission, distribution, and renewable grounding systems

Indicator

Visual grounding aid to support inspection, maintenance, and field awareness

ArcAngel’s optional indicator strand finish provides a clear visual reference within grounding systems, helping crews quickly identify grounding conductors during installation, inspection, and maintenance activities.

Features and Benefits:

High-visibility indicator strand integrated into the stranded grounding conductor
Tin-coated finish helps the conductor visually blend with galvanized fencing and structures
Visual cues help signal to thieves that the conductor is not solid copper
Indicator strand supports faster identification during inspection and maintenance activities
