Copperweld® MC AGP Cable helps teams manage cost, simplify grounding design, and improve installation workflow while delivering efficient electrical performance across commercial and infrastructure projects.

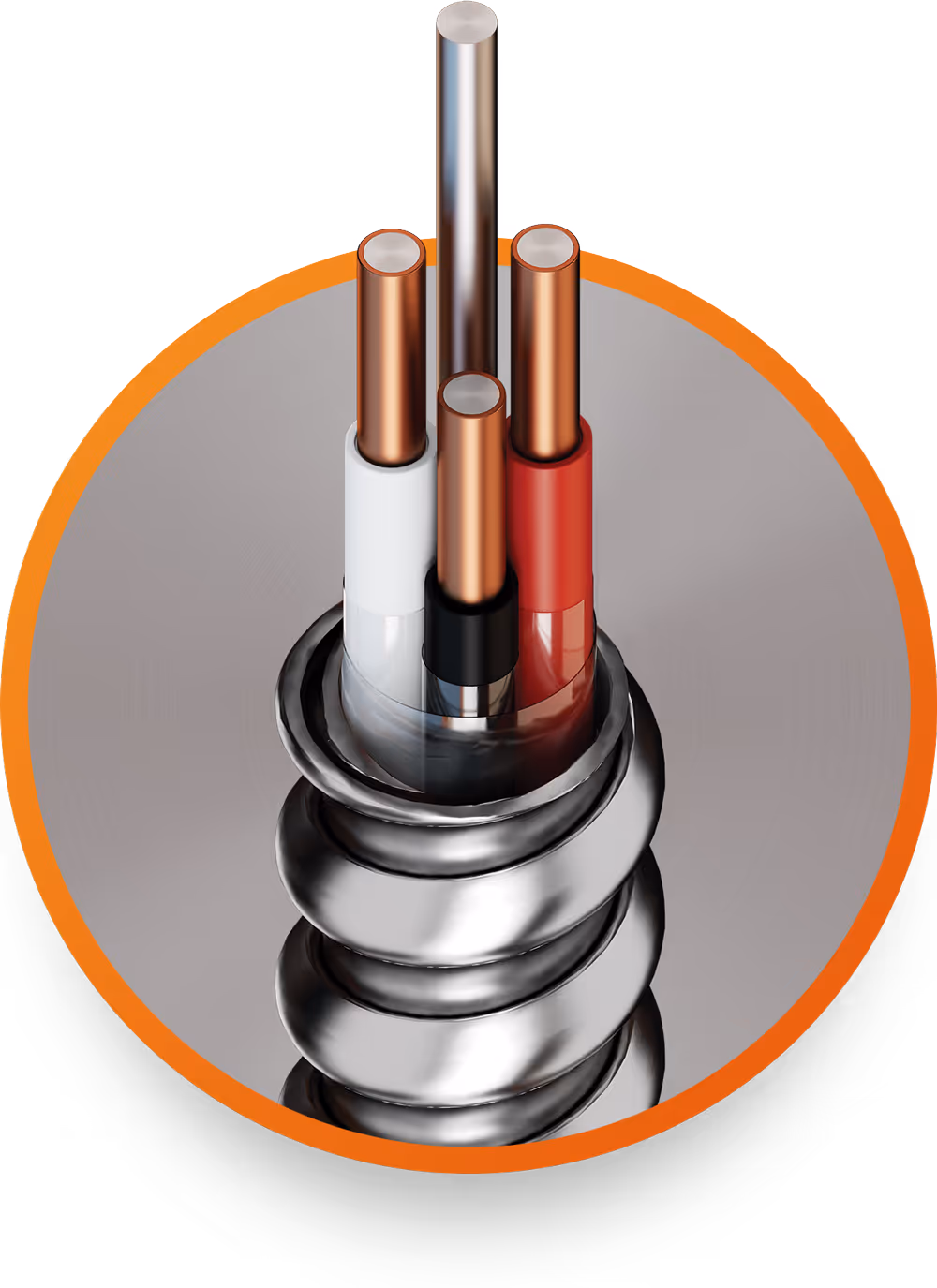

In commercial and infrastructure projects where grounding systems must be effective, efficient, and code-compliant, installations often require additional conductors and coordination to establish a reliable ground path. Copperweld® MC AGP Cable simplifies these demands by using its interlocking aluminum armor as a component of the ground path, reducing the need for separate grounding conductors and helping streamline installation across a wide range of applications. Its lightweight, flexible construction improves handling and routing in the field, and its bimetallic design helps reduce exposure to copper price volatility, minimize theft-related disruptions, and deliver efficient electrical performance when sized per NEC requirements.
| CCA Size (AWG) | No. of Strands | Solid Alum. Bonding Cond. Size | Overall Diameter | Approx. Weight | CCA Allowable Amerage* | |||
|---|---|---|---|---|---|---|---|---|
| in | lb/1000 ft | 75° C | 90° C | |||||
| 12/2-G | Solid | 12 | 0.45 | 75.2 | 20 | 25 | ||
| 12/3-G | Solid | 12 | 0.47 | 89.5 | 20 | 25 | ||
| 12/4-G | Solid | 12 | 0.51 | 104.7 | 20 | 25 | ||
| 10/2-G | Solid | 10 | 0.51 | 95.1 | 30 | 35 | ||
| 10/3-G | Solid | 10 | 0.55 | 116.2 | 30 | 35 | ||
| 10/4-G | Solid | 10 | 0.59 | 139.2 | 30 | 35 | ||
| 10/2-G | 7 | 10 | 0.54 | 98.8 | 30 | 35 | ||
| 10/3-G | 7 | 10 | 0.57 | 121.3 | 30 | 35 | ||
| 10/4-G | 7 | 10 | 0.62 | 144.6 | 30 | 35 | ||
| 8/2-G | 7 | 8 | 0.64 | 139.0 | 40 | 45 | ||
| 8/3-G | 7 | 8 | 0.69 | 174.1 | 40 | 45 | ||
* Ampacity of Metal-Clad product is based on NFPA 70 (NEC) Table 310.16 for a temperature rating of the conductors of 75°C and 90°C according to article 340.80 (Ampacity for MC Cable). | ||||||||
| Part Name | No. of Strands | Conductor Color Sequence* | Standard Packaging** | Part Number*** | ||||
|---|---|---|---|---|---|---|---|---|
| 12/2-G | Solid | BK, WT | 250’ or 1000’ | 12/2MCAGP-1/1-CCA-A-[Ft]-[Pkg] | ||||
| 12/3-G | Solid | BK, WT, RD | 250’ or 1000’ | 12/3MCAGP-1/1-CCA-A-[Ft]-[Pkg] | ||||
| 12/4-G | Solid | BK, WT, RD, BL | 250’ or 1000’ | 12/4MCAGP-1/1-CCA-A-[Ft]-[Pkg] | ||||
| 10/2-G | Solid | BK, WT | 250’ or 1000’ | 10/2MCAGP-1/1-CCA-A-[Ft]-[Pkg] | ||||
| 10/3-G | Solid | BK, WT, RD | 250’ or 1000’ | 10/3MCAGP-1/1-CCA-A-[Ft]-[Pkg] | ||||
| 10/4-G | Solid | BK, WT, RD, BL | 250’ or 1000’ | 10/4MCAGP-1/1-CCA-A-[Ft]-[Pkg] | ||||
| 10/2-G | 7 | BK, WT | 250’ or 1000’ | 10/2MCAGP-7/1-CCA-A-[Ft]-[Pkg] | ||||
| 10/3-G | 7 | BK, WT, RD | 250’ or 1000’ | 10/3MCAGP-7/1-CCA-A-[Ft]-[Pkg] | ||||
| 10/4-G | 7 | BK, WT, RD, BL | 250’ or 1000’ | 10/4MCAGP-7/1-CCA-A-[Ft]-[Pkg] | ||||
| 8/2-G | 7 | BK, WT | 1000’ | 8/2MCAGP-7/1-CCA-A-[Ft]-[Pkg] | ||||
| 8/3-G | 7 | BK, WT, RD | 1000’ | 8/3MCAGP-7/1-CCA-A-[Ft]-[Pkg] | ||||
* Insulation colors: Black (BK), White (WT), Red (RD), Blue (BL), Green (GR) unless otherwise noted. Other color combinations are available on request, including standard 480V colors. ** Packaging: Other packaging and denomination options are available on request. *** Part Number Legend: [Size/# of Circuit Cond.][Type]-[# of Strands Circuit Cond. / Ground Cond.]-CCA-A-[Length in Feet]-[Packaging] • Standard Packaging [Pkg]: Hand Coils [C], Plastic Spools or Wooden Reels [RL] | ||||||||
