Copperweld® MC HCPCS Cable helps teams manage cost, support compliant installations, and simplify system coordination while delivering efficient electrical performance in healthcare environments.

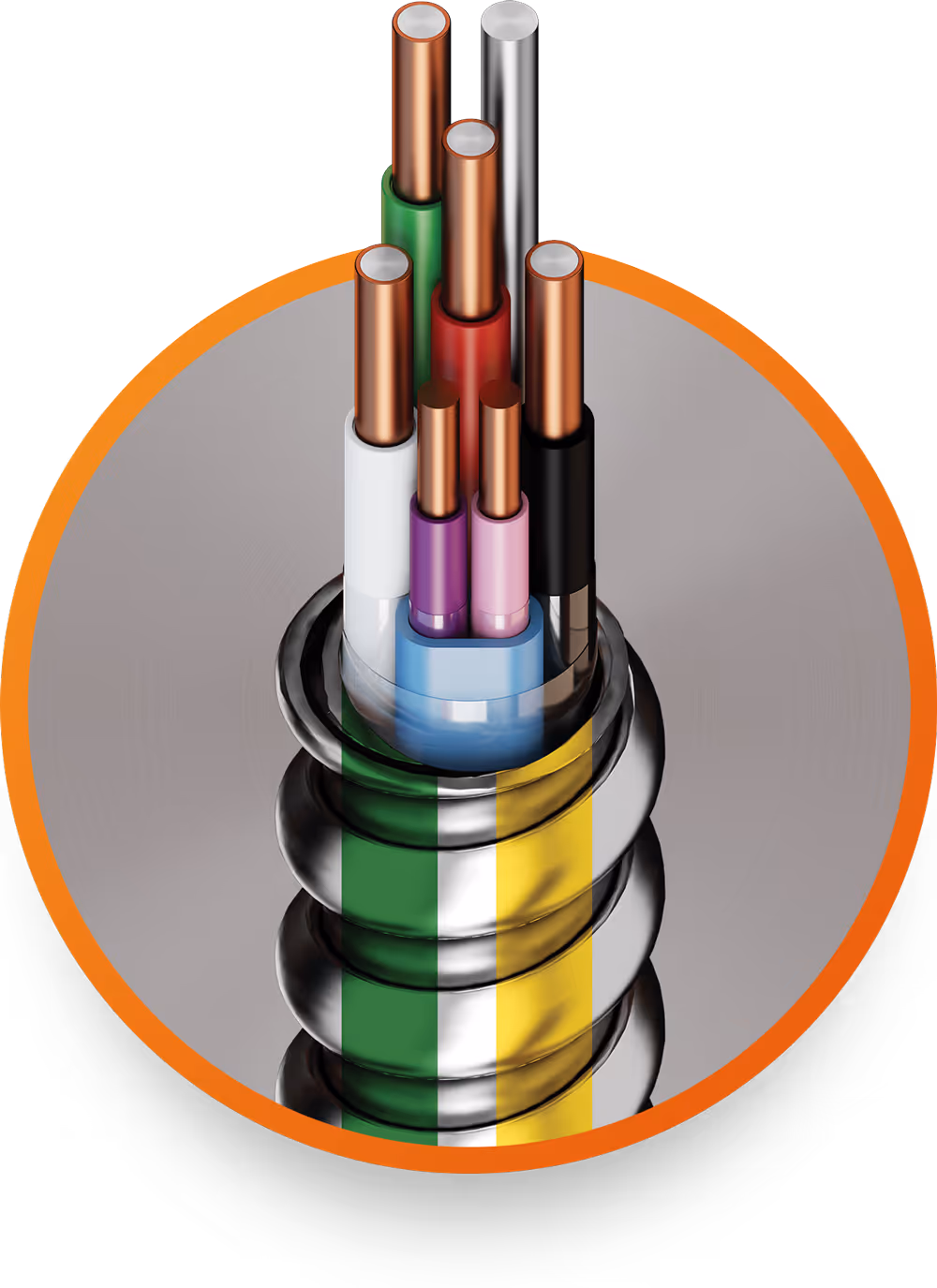

In hospitals and healthcare facilities that require integrated power, lighting, and control systems, installations must coordinate multiple wiring systems while meeting strict code requirements and maintaining reliable performance in patient care areas. Copperweld® MC HC PCS Cable simplifies these demands by combining power and control/signal conductors into a single cable, reducing the need for multiple runs while supporting compliant installation in healthcare environments. Its lightweight, flexible construction improves handling and routing in the field, and its bimetallic design helps reduce exposure to copper price volatility, minimize theft-related disruptions, and deliver efficient electrical performance when sized per NEC requirements.
| Part Name | No. of Strands | Ground Wire Size | Solid Alum. Bonding Cond. Size | Overall Diameter | Approx. Weight | CCA Allowable Amerage* | ||
|---|---|---|---|---|---|---|---|---|
| in | lb/1000 ft | 75° C | 90° C | |||||
| 12/2-G | Solid | 12 | 12 | 0.56 | 131.4 | 20 | 25 | |
| 12/3-G | Solid | 12 | 12 | 0.59 | 145.3 | 20 | 25 | |
| 10/2-G | Solid | 10 | 10 | 0.62 | 155.6 | 30 | 35 | |
| 10/3-G | Solid | 10 | 10 | 0.67 | 178.3 | 30 | 35 | |
| 8/2-G | 7 | 8 | 8 | 0.73 | 209.2 | 40 | 45 | |
| 8/3-G | 7 | 8 | 8 | 0.82 | 264.9 | 40 | 45 | |
* Ampacity of Metal-Clad product is based on NFPA 70 (NEC) Table 310.16 for a temperature rating of the conductors of 75°C and 90°C according to article 340.80 (Ampacity for MC Cable). | ||||||||
| Part Name | Conductor Color Sequence* | Standard Packaging** | Part Number*** | |||||
|---|---|---|---|---|---|---|---|---|
| 12/2-G | BK, WT, GR (G) | 250’, 1000’ | 12/2HCPCS-1/1-CCA-AP1-[Ft]-[Pkg] | |||||
| 12/3-G | BK, WT, RD, GR (G) | 250’, 1000’ | 12/3HCPCS-1/1-CCA-AP1-[Ft]-[Pkg] | |||||
| 10/2-G | BK, WT, GR (G) | 250’, 1000’ | 10/2HCPCS-1/1-CCA-AP1-[Ft]-[Pkg] | |||||
| 10/3-G | BK, WT, RD, GR (G) | 250’, 1000’ | 10/3HCPCS-1/1-CCA-AP1-[Ft]-[Pkg] | |||||
| 8/2-G | BK, WT, GR (G) | 250’, 1000’ | 8/2HCPCS-7/1-CCA-AP1-[Ft]-[Pkg] | |||||
| 8/3-G | BK, WT, RD, GR (G) | 250’, 1000’ | 8/3HCPCS-7/1-CCA-AP1-[Ft]-[Pkg] | |||||
* Insulation colors: Black (BK), White (WT), Red (RD), Blue (BL), Green (GR) unless otherwise noted. Other color combinations are available on request, including standard 480V colors. ** Packaging: Other packaging and denomination options are available on request. *** Part Number Legend: [Size/# of Circuit Cond.][Type]-[# of Strands Circuit Cond. / Ground Cond.]-CCA-AP1-[Length in Feet]-[Packaging] • Standard Packaging [Pkg]: Hand Coils [C], Plastic Spools or Wooden Reels [RL] | ||||||||
