Designed for long-term performance

Century is engineered for unmatched durability, long service life, and dependable grounding in the toughest utility environments.

Century delivers high-strength grounding performance for utilities that prioritize durability in the harshest conditions. Designed to resist mechanical damage, deformation, and long-term environmental exposure, Century supports dependable grounding across substations, transmission corridors, and remote infrastructure. With Bare, Camo, and Hide finish options, utilities can match physical visibility and site needs.

Features and Benefits:

Unmatched Durability – Engineered for maximum mechanical durability, Century withstands demanding installs where resiliency is essential.
Superior Strength – With the strength of steel, CCS resists stretching, breakage, and deformation under mechanical and thermal stress.
Reduced Theft Incentives – With a rugged steel core and lower scrap value than solid copper, CCS helps reduce theft incentives in remote or unmonitored locations.
Corrosion Resistance – Copperweld CCS conductors are engineered to perform in demanding above-grade and below-grade grounding applications.*
Bare, Camo, or Hide Finishes – Available in multiple finish options, Century helps utilities match site visibility needs and installation environments.
*
Service life varies based on soil conditions, installation environment, and exposure factors. Underground performance may be impacted by soil chemistry, pH, moisture, and circulating currents. These conditions influence the performance of all grounding conductor materials, including copper and CCS.

Century Product Specifications

with copper comparison

Part NamePart #StrandsFault Current*Nom. Break Load**Weight/LengthOverall Diameter
kA @ 500 mslbfkgflb/kftkg/kminmm
Century 19 No. 4
Q6C19X4A19108.828,60812,9762,2553,3561.02225.96
500 kcmil Copper
CUZ37X1162A37101.015,2406,9131,5442,2980.79620.22
Q6C19X5A1987.122,33310,1301,7882,6610.91023.10
350 kcmil Copper
CUZ37X0973A3773.010,6804,8441,0811,6090.67617.17
Q6C19X6A1969.718,8108,5321,4182,1100.81020.57
Q6C19X7A1955.814,1076,3991,1251,6740.72218.33
250 kcmil Copper
CUZ37X0822A3752.07,6273,4607721,1490.57214.53
Q6C19X8A1944.611,9025,3998921,3270.64316.32
4/0 Copper
CUZ19X1065A1944.05,9832,7146539720.54613.40
Q6C7X04A740.110,5404,7818271,2310.61315.57
Q6C19X9A1935.69,2514,1967071,0520.57214.53
Q6C7X05A732.18,2283,7326569770.52813.86
Q6C19X1055A1930.47,9523,6076018950.51013.40
Q6C19X10A1928.47,4213,3665618350.91012.94
2/0 Copper
CUZ19X0837A1928.03,7631,7074116110.40210.21
Q6C7X06A725.76,9303,1435207740.48612.34
1/0 Copper
CUZ19X0745A1922.03,2211,4613234810.3689.36
Q6C7X07A720.65,1982,3584136150.43311.00
Q6C19X0860A1920.34,9592,2494005950.43010.92
Q6C19X0827A1919.64,7382,1493655430.41410.50
Q6C7X1379A718.84,5682,0725618350.41410.51
Q6C7X08A716.44,3851,9893274870.3869.79
Q6C19X075A1915.54,2571,9313044520.3759.53
No. 2 Copper
CUZ7X0974A714.01,9288752053050.2586.54
Q6C7X09A713.13,4081,5463865740.3438.72
Q6C7X10A710.52,7341,2402063060.3067.76
No. 4 Copper
CUZ2043A19.01,2005441291920.2045.19
Q6C2576A18.92,5611,1621862770.2586.54
Q6C7X0860A77.52,0699381472190.2586.55
Q6C2043A15.71,6737591171740.2045.19
No. 6 Copper
CUZ1620A15.0763346811210.1624.11
Q6C7X0680A74.71,295587911350.2045.18
Q6C1620A13.71,100499741100.1624.11
No. 8 Copper
CUZ1285A13.049922651760.1293.28
Q6C1285A12.569631647690.1293.28
*
Short Circuit Fault Currents are shown in accordance with IEEE80:2013, Table 6, X/R=0, (in kA)
**
Breakload Tensile Strength is based upon tested results per ASTM 2.03.

Product Applications

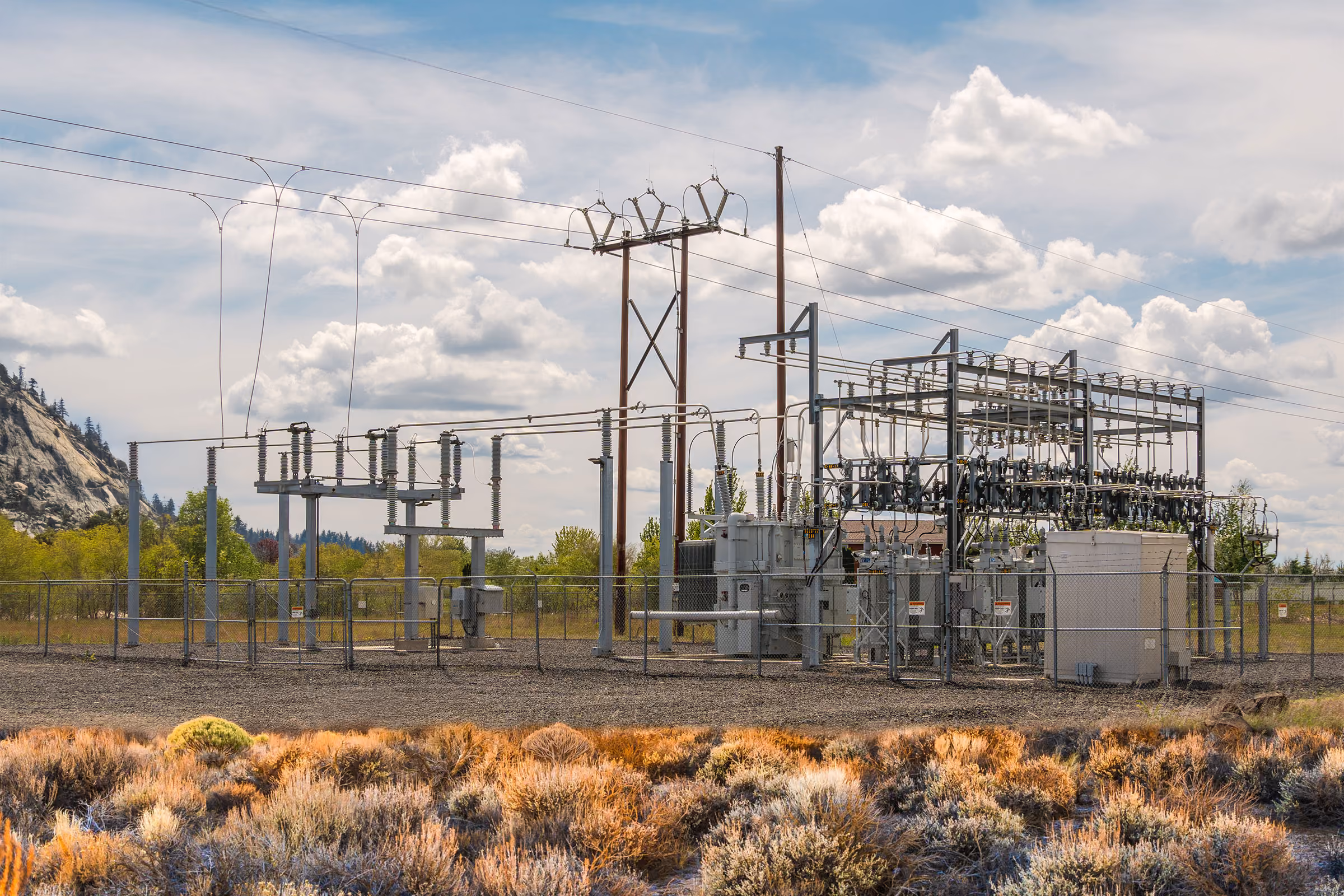

  • Substation
  • Grounding grids and ground mats
  • Equipment grounding and bonding (transformers, breakers, steel structures)
  • Fence grounding and perimeter grounding systems
  • Substation expansions, upgrades, and retrofits
  • Long-term grounding in high-traffic or mechanically demanding areas
  • Grounding applications where Camo or Hide finishes help reduce visual contrast with gravel or surrounding infrastructure
  • Transmission & Distribution
  • Transmission tower grounding
  • Distribution pole grounding
  • Overhead grounding where long spans and mechanical strength matter
  • Bonding of steel structures and hardware
  • Grounding conductors where Camo or Hide finishes help visually blend into natural or built environments
  • Renewable Energy
  • Solar farm grounding grids and equipment grounding
  • Wind turbine grounding and foundation bonding
  • Collection system grounding for solar and wind projects
  • Grounding for remote or unmanned solar and wind installations
  • Grounding applications where Camo or Hide finishes help minimize visual impact across large, open sites

Finish Options

Bare
Camo
Hide

Bare

Our original uncoated CCS finish

Bare Copperweld® Copper-Clad Steel (CCS) combines the mechanical strength of steel with the conductivity and corrosion resistance of copper. Continuous copper cladding is metallurgically bonded to a steel core, creating a grounding conductor built for long service life in demanding environments.

Features and Benefits:

  • Connector-ready — no stripping, sanding, or surface preparation required
  • Installed and terminated like standard copper conductors

Camo™

Camoflauge your conductor into the surrounding environment

Copperweld Camo™ is a 100% copper finish applied using a proprietary process that alters the surface appearance of the conductor. The result is a grounding conductor that performs like copper while visually blending into steel and galvanized environments, helping reduce theft incentives.

Features and Benefits:

  • Connector-ready — no stripping, sanding, or surface preparation required
  • Installed and terminated like standard copper conductors

Hide™

Hide your grounding conductor in plain sight

Copperweld Hide is a PVC-jacketed Copper-Clad Steel grounding conductor designed to visually blend into its surroundings while providing clear, sequential footage markings for installation and maintenance visibility.

Specifications:

Grounding Conductor
Copperweld Copper-Clad Steel (CCS)
Insulation Material
PVC with UL 720 sunlight resistance
Insulation Thickness
25 mil, +/- 5 mil
Color Options
Black with Parallel Green Stripe
Green with Parallel Yellow Stripes
Gray Jacket
Polymer Tensile
Min. 1500 psi
Polymer Elongation
Min. 100%
Oxygen Index %
32, per ASTM D-2863
Brittleness Temp.
Min. -40° C
Service Life
30 years, or first high-energy fault
Dielectric*
No dielectric insulation value
Harmonized Marking
Sequential footage markings along the full length of the cable
Packaging
Spools, hand coils, or wooden reels
*
Contact Copperweld for dielectric information on specific constructions

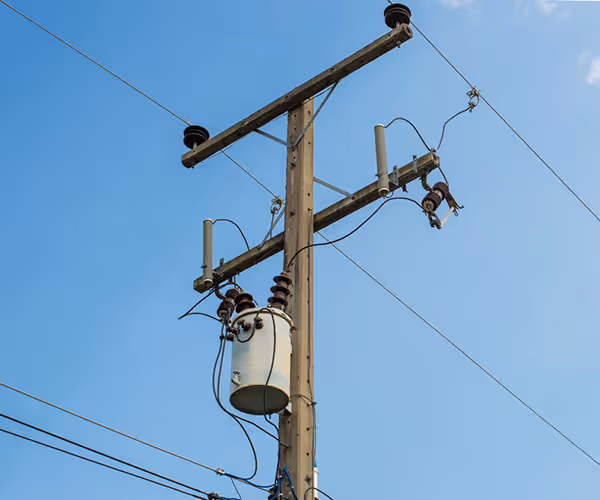

Smarter way to protect pole-top connections

Flexible, Durable High-Voltage Riser Wire for Pole-Top Transformers

Copperweld Stingray is an easy-to-install, covered Copper-Clad Steel (CCS) transformer riser wire designed for pole-top distribution applications. Engineered for animal protection, Stingray helps reduce outages caused by incidental wildlife contact between primary phase conductors and equipment bushings. With a durable jacket and a strong CCS core built to withstand wind fatigue and weather exposure, Stingray supports long-term reliability in critical overhead connections.

Features and Benefits:

Protective Covering – Helps prevent incidental and wildlife contact that can lead to equipment failure, service disruption, and outages in pole-top installations.
Longer Service Life – With a strong CCS core, Stingray withstands wind fatigue up to 8x longer than solid copper, delivering durable performance in harsh overhead environments.
Easier to Install – Stingray’s thermoplastic rubber covering is easier to strip than traditional HMW polyethylene, supporting faster field connections.
Superior Strength – With the strength of steel, CCS resists stretching, breakage, and deformation under mechanical and thermal stress.

Stingray Product Specifications

with copper comparison

Part NamePart #Strands
Max.
Ampacity
Break Load
Overall
Diameter
Insulation
Thickness
Linear
Weight
Linear
Weight
Ampslbsininlb/ft
STINGRAY24572452,8260.6060.1500.300
125’ Spool
150’ Hand Coil
750’ Reel
#2 Copper
–72351,9280.583–––
STINGRAY19571952,0130.5580.1500.232
150’ Spool
200’ Hand Coil
1000’ Reel
#4 Copper
–11851,2000.504–––
STINGRAY13571351,1150.4120.1100.126
200’ Spool
250’ Hand Coil
1000’ Reel
#6 Copper
–11247630.478–––
STINGRAY90S7901,0350.3820.1100.112
300’ Spool
400’ Hand Coil
2000’ Reel
*
The maximum rated ampacity listed is for short durations only.  The recommended maximum continuous ampacity load is 65% of the rating shown.

Product Applications

  • Transmission & Distribution
  • Transformer riser wire from subtransmission or primary phase conductors to surge arresters or the line side of cutouts
  • Transformer riser wire from the load side of cutouts to transformer bushings
  • Bird wire and squirrel wire protection for covered transformer riser connections in overhead distribution
